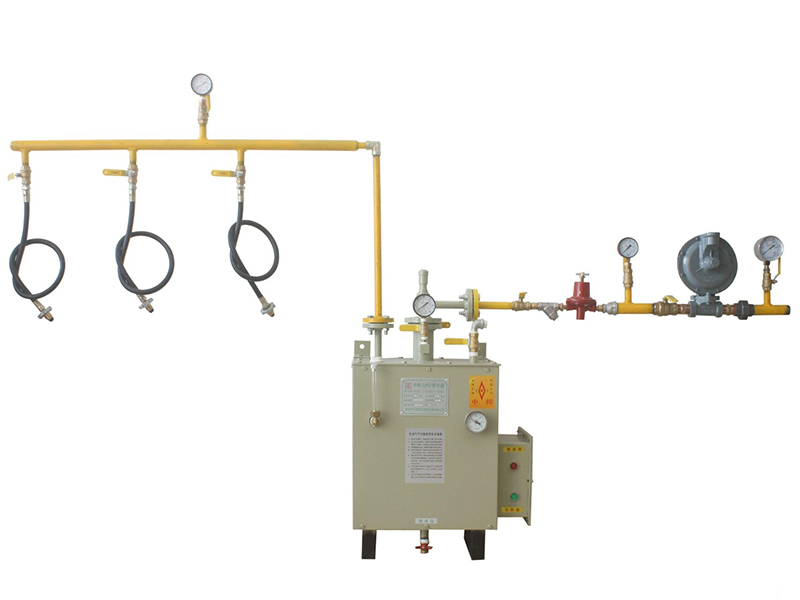

Gas pressure regulating system
A gas pressure regulating system is a sophisticated piece of equipment that ensures the supply of gases, whether for industrial processes, household use, or scientific applications, operates at a consistent and safe pressure.
- Information
Overview of Natural Gas Regulation Cabinets
Gas regulation (measurement) cabinets (boxes, stations) serve as essential components in gas transmission and distribution networks, ensuring a stable and reliable gas supply to residential complexes, public utilities, direct-burning appliances, gas boilers, industrial furnaces, and more.
Main Configuration
A standard natural gas regulator cabinet typically includes:
Gas Filter: Enhances gas flow cleanliness by removing contaminants.
Gas Regulator: Adjusts gas pressure to maintain optimal levels.
Safety Shutoff Valve: Automatically shuts off in case of emergencies to prevent gas leaks.
Safety Release Valve: Releases excess pressure to safeguard against overpressure situations.
Forged Steel Ball Valve (or Butterfly Valve): Controls gas flow within the cabinet.
Metering Instrument: Accurately measures gas consumption.
Main Pipeline and Control Pipelines: Manage gas flow and distribution.
Expanded Functions
The cabinets offer several enhancements tailored to user requirements:
Optional Flow Meter and Differential Pressure Gauge: For precise flow measurement and pressure monitoring.
Data Acquisition System: Tracks and records operational data for maintenance and analysis.
Insulation and Heating Measures: Provides thermal insulation and heating for cold environments, as needed.
Product Characteristics
Noteworthy features encompass:
Integrated Regulation (Measurement), Filtration, Safety Shut-off, and Release: Ensures efficient and safe gas delivery.
Comprehensive Testing: Guarantees stable and reliable operation of gas regulation systems.
Efficient Design: Optimizes space usage and aesthetics, suitable for both indoor and outdoor settings.
Modular Design: Facilitates easy integration of additional features like gas alarm systems and data collection capabilities.
Convenient Installation, Commissioning, Operation, and Maintenance: Reduces setup and maintenance complexity.
Strong Structure and Comprehensive Functionality: Offers high reliability and system coherence.
Diverse Cabinet Materials: Available in galvanized steel spray painted cabinets, stainless steel cabinets, and insulated aluminum composite panels, catering to various environmental conditions.
Versatile Media Compatibility: Supports natural gas, artificial liquefied gas, and other gases for wide-ranging applications.
This comprehensive design ensures that natural gas regulator cabinets meet diverse needs in modern gas distribution networks while maintaining safety, efficiency, and environmental compatibility.
